1 Radar/Locomotive Test Stand
2 Speed Sensor Test Stand-Coach
3 Speed Sensor Test Stand-Traction Motor
4 EPD Test stand
5 Temperature Sensor Test Stand
6 Fuel Pump Motor Test Stand

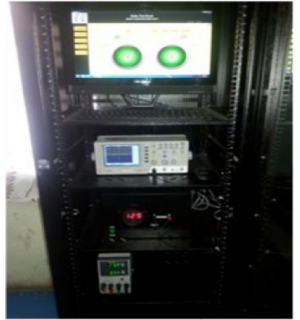

1 Radar/Locomotive Test Stand

Radar/Locomotive Speed Sensor Test Stand

Product Description:

  • This is used to test and calibrate the Radar Speed Sensor or Locomotive speed sensor on the bench by simulating loco Parameters.
  • Here radar can be tested and calibrated according to specified loco speed.
  • Radar test bench is used to test the Radar for operation of Microwave sensors and self-test (As perlocomotive self-test Procedure) can be simulated on test bench before installation on a locomotive.

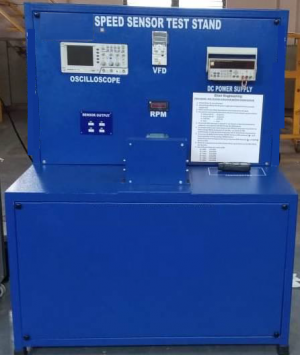

2 Speed Sensor Test Stand-Coach

COACH SPEED SENSOR TEST STAND

Product Description:

  • The Speed Sensor is fixed on TM test jig and the sensor works on magnetic measurement principle.
  • When speed sensor scans any ferromagnetic material, output level Changes.

Features Of Test Stand:

  1. Compatible and Suitable for testing of various Speed Sensors.
  2. Test bench is fixed with Nylon Wheels for easy mobility.
  3. Hand held Tachometer is used for accurate measurement of motor speed.
  4. Reliable in Operation and Robust in Nature.
  5. User friendly & Maintenance Free.
  6. Brighter & clearer display CRO.
  7. 5 digit RPM Indicator with 7 segment LED display.
  8. High Efficiency Motors and Variable Frequency Drive (VFD)
3 Speed Sensor Test Stand-Traction Motor

Speed Sensor Test Stand For Traction Motor

Product Description:

  1. Nominal Voltage : 15 VDC
  2. Speed Max : 3000 RPM
  3. Gear Wheel : 120/200 teeth wheel ( variable speed )
  4. 3 and 5 pin suitable male connector for speed sensor, 5 pin suitable male connector for signal.
  5. 1 Revolution 360 deg : 120 pulse.
  6. Power Supply Input with 230VAC 50Hz, 0 to 150 VDC variable.
  7. Built in DC to DC converter in the sensor.
  8. Reverse polarity protection provided.
  9. Output characteristics at gap between the sensor and gear wheel is 3mm and 1.25mm.
4 EPD Test stand

EPD Test stand

Product Description:

  • The Engine Protection Device (EPD) protect the engine against all abnormal conditions that can be harmful for the engine such as over speed, low oil pressure, low coolant pressure, low/high coolant temperature, high crankcase pressure, hot lubricating oil, and overload
  • Also, the system reduces the particulate gaseous and noise emission generated by idling locomotives as well as cutting down on wear and tear on the locomotive engine.
  • Engine Protection Device or Detector Sensor Assembly for crankcase pressure, in locomotives whenever the crank case water goes low this device work like detector sensor and allow the loco to shut down.
  • In locomotives it checks to be certain the crankcase pressure detector reset buttons are set.
  • If either button protrudes, press and hold button for five (5) seconds immediately after engine starts.

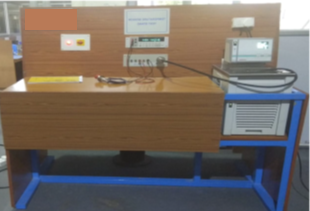

5 Temperature Sensor Test Stand

Temperature Sensor Test Stand

Product Description:

  • Temperature sensor test stand is designed in order to test the various temperature sensors.
  • It consists of test bench to which the refrigerator/temperature bath is mounted on the surface of the bench along with the Multimeter mounted on the face of the test bench to measure the resistance of PT 100 and various other sensors range.
  • Mounting plate is inserted in the bath so that multiple numbers of sensors can be tested at a time.

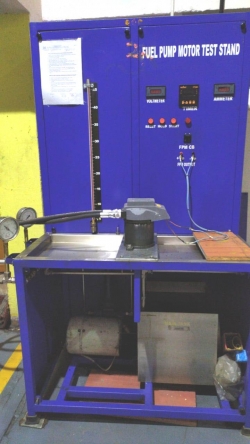

6 Fuel Pump Motor Test Stand

Fuel Pump Motor Test Stand

Product Description:

    The Fuel pump motor test stand consist of the following items:
  • Variable DC Power Supply
  • Switch toggle
  • Digital flow meter with sensor
  • Analog/Digital Pressure Guage
  • Diesel Filter
  • Diesel Tank (Metal with Corrosive resistant)
  • Flow Control Value
  • GI Pipe
  • Connecting Accessories
