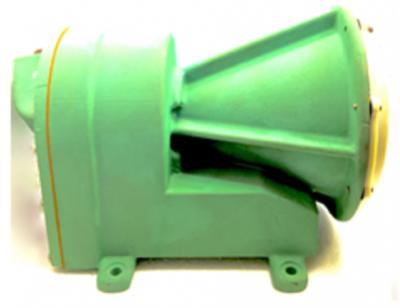

Product Description:

Specification:

1. Output: +15 volts pulse wave with 50% duty cycle with 22.5Hz/Miles per hour
2. Speed Measurement: 4KMPH to 200KMPH
3. Target distance: up to 2 meters
4. Transmit frequency:24.125GHz
5. Power: 5 to 10 (Milliwatt)

Application:

1. It is used to detect the speed of moving objects through the Doppler principle.
2. It is developed for improving the realizable adhesion in WDG4 & WDP4 class locomotives during wheel slip conditions which occur due to bad weather and poor track conditions.
3. is used to detect the ground speed, which is compared with each axle speed

Product Description:

• The starting contactors are used to connect the storage battery to the main generator for starting the diesel engine.
• These contactors are energized (closed) when the start button (switch) is pressed after the necessary battery and control circuits are established.
• The contactors consist of coil-operated main contacts which carry the heavy starting current and smaller auxiliary contacts which are used as interlocks.

Product Description:

• The starting contactors are used to connect the storage battery to the main generator for starting the diesel engine.
• These contactors are energized (closed) when the start button (switch) is pressed after the necessary battery and control circuits are established.
• The contactors consist of coil-operated main contacts which carry the heavy starting current and smaller auxiliary contacts which are used as interlocks.

Product Description:

• GFD Contactors are heavy duty, two pole bridge type contactors.
• This contactor is used to decrease the discharge time of the generator field circuit.
• On occurrence of fault the GFDR relay opens making the pickup coil of the GFD contactor to drop.
• As a result, the main contacts of the GFD contactor open up to insert a resistor in the main generator field discharge circuit and hence increasing the field decay rate.

Product Description:

• GFD Contactors are heavy duty, two pole bridge type contactors.
• This contactor is used to decrease the discharge time of the generator field circuit.
• On occurrence of fault the GFDR relay opens making the pickup coil of the GFD contactor to drop.
• As a result, the main contacts of the GFD contactor open up to insert a resistor in the main generator field discharge circuit and hence increasing the field decay rate.

Product Description:

• STA are placed in start panel equipped assembly.
• When the FUEL PRIME/ENGINE START switch is placed in the engine start position and DIO 1 output channel 18 is turned “ON” by EM2000 (if software conditions are fulfilled), STA main contact closes to apply battery power to the “pick up” solenoids that are part of the starting motors assembly.
• The solenoids drive the cranking motor pinions in, to mesh with the engine ring gear.

Specification:

1. Main Contacts: 2 NO to which supply will be directly given from the companion alternator in the loco (100amps,230V)Coil Resistance: 100 Ohms
2. Auxiliary Interlocks: 2 NO & 2 NC (10amps) (i.e., AB,CD,EF,GH)

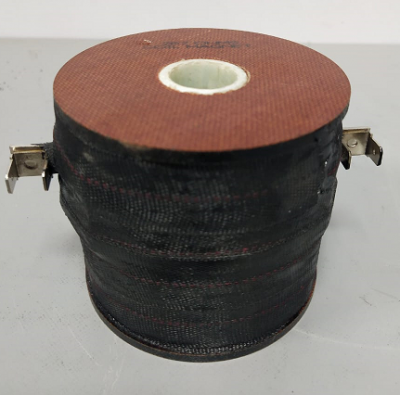

3. Ohmic Value Of Coil: 267 Ω ± 10% @20ºC
4. Working Condition: 74VDC
5. Max Pick-Up: 48V DC
6. Dropout: 5-28 VDC

Application:

1. It is used in electrical control cabinet 2

Product Description:

• The purpose of GFC contactor is to connect exciter generator supply to main generator field for field excitation.
• The contactor picks up when circuits are complete for power operation, dynamic braking, or load testing.
• The GFC contactor is controlled by the EM2000 and picks up when circuits are complete for power operation, dynamic brake or load testing.

Product Description:

• The fuel pump starts to work in diesel loco when the engine start swtich held in PRIME, the locomotive computer starts the fuel pump which pressurizes the injection system.
• The fuel pump moves the fuel from the fuel tank under the locomotive to the injectors. After the entire system has been supplied with fuel, the engine can be started by holding the PRIME/START switch in START.
• With the engine running, the fuel pump motor is powered output by the auxiliary generator.

Product Description:

• This inverter for vertical fuel pump motor of paragon make is highly reliable, it converts 72VDC to 55V 3-phase AC for motor operation.
• The inverter is rugged and maintenance free, given satisfactory performance even in extreme operating condition and already has proven performance in the field.

Product Description:

Product Description:

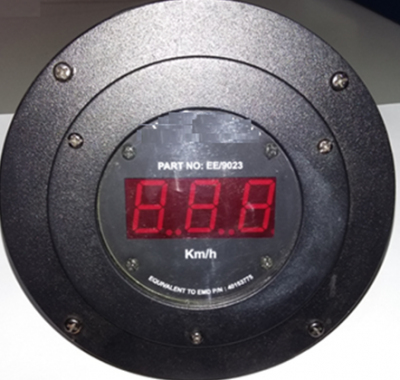

• This Microprocessor based Digital Speed Indicator provides an accurate speed display in both driver desk and base-mount versions.
• It suits all kinds of locomotives.
• It is used in WDG-4/WDP-4 like AEB/Non AEB user settable and GTO/IGBT locomotives.
• The digital speed displayed on this indicator is the same as that on the locomotive computer display.
• This helps avoid errors in driver sheet with respect to log speed.

Product Description:

• TMTS is used to measure temperature of armature of traction motor and also measures temperature by correlating resistance of RTD element.
• RTDs in Traction motors measure the temperature inside the armature coil.
• RTDs are relatively immune to Electrical Noise and therefore well suited for temperature measurement especially around motors, generators and other high voltage equipment.

Product Description:

• TM speed sensors are used in Railway Locomotive application to measure the speed of the traction motor and to control the brakes to prevent brake locking and wheel slippage.
• These motors are normally equipped with a transmitter wheel, which is sensed by speed sensor.
• As the system needs to drive the train forwards and backwards, the sensor has 2 phase shifted channels thus enabling direction sensing port from the speed.

Product Description:

• The Ground Relay Circuit is intentionally connected to the locomotive frames.
• Therefore, any generator imbalance condition or accidental contact with the frame will result in current flow through the frame between the intentionally grounded GR circuit and accidental ground in the locomotive circuit.
• On past Micro-Processor units, the locomotive automatically locks in particular mode if a certain within a certain time frame.
• The same technology has been adopted in P4 and G4 locomotives.
• However, the timing of this event is a bit different with EM2000 control.
• Specially, each GR event is now timed individually irrespective to any other event.
• Once 10 mins have passed post the occurrence of the first event, the event is cleared from the events routine’s memory.
• These relays are epoxy (potting compound) encapsulated for excellent corrosion protection, reduces noise and ground protection well to the maximum of volts.

Product Description:

• This transductor contains several control windings which act on a single output winding.
• The control windings are connected in circuits which sense faults that are potentially dangerous to the main generator.
• This is used in the ground relay transductor (GRT) circuit to prevent AC voltage from the main generator from being applied to the negative DC generator busoutput.
• This 190 Ω resistor is connected in parallel with the primary winding of transformer T2, and in series with the primary winding of Ground Relay Transductor GRT is used to shunt voltage spikes that occur across T2.

Specification:

1. Rated Current : 2Amps Output
2. DC Control : 2Amps Each Winding
3. Maximum Burden: 1:1 Each Winding
4. Rated Burden : 60 Volts

Application:

1. Used in the ground relay transductor (GRT) circuit to prevent AC voltage from the main generator
2. It is used to shunt voltage spikes that occur across T2.

Product Description:

• This is sub part of electrical control cabinet which will be mounted inECC-1.
• This is also called as Ground Relay Transformer and provides supply voltage to ground Relay (GR) to pick up coil circuit.

Product Description:

• Our Relays designed has true Vapor style direct replacement locomotive relay by using existing mounting holes and similar FASTON configuration as EMDs part No. 8357415.
• There is no modification required since this is a direct replacement to Vapor relays.
• These relays are epoxy (potting compound) encapsulated for excellent corrosion protection, reduces noise and ground protection well in to the maximum of volts.
• The RED LED status indicator is available on these modules.

Product Description:

• These hall-effect current transducers measure grids blower motor current.
• The PDP2 (Power Distribution Panel) supplies the ±15 VDC required for the transducers operation and provides the connections between 1BKBL1-2 and ADA (Analog to Digital to Analog) module.
• This information is used by EM2000 to detect open/shorted motor condition and seized bearings.
• The 1BKBL1-2 output signal is in volts DC, the input current vs output voltage ratio is 25A/VDC.

Product Description:

• The operating range is 2000 PSI and output current is 4-200mA

Specification:

1. Operating Temperature Range: –40° C to +125°C
2. Pressure range: 200 Psi
3. Response time: <2mS
4. Accuracy: ±0.25% BFSL
5. supply current: 5mA
6. output: 4-20mA

Application:

1. It is used in electrical control cabinet 3
2. It is used to monitor main reservoir pressure

Product Description:

• This device has the Hall Effect based closed loop (Compensated) current sensors.
• It can be used for measuring either of AC, DC or Pulsed Currents.
• This device works through Galvanic Isolation between the high power (Primary) and low power (Electronic Secondary) Circuits.
• We also have current transducers for Electric Locomotives.

Specification:

1. Nominal current: 1000A RMS
2. Turn ratio: 1:4,000
3. Test Voltage: Between Primary & Secondary: 6KVRMS/50HZ/1MIN
4. Bandwidth: 0 to 100 khz

Application:

1. These current transducers measure grids blower motor current
2. It is used to detect electrical current in a wire and generate a signal proportional to it

Product Description:

• The battery charging rectifier assembly converts 55v 3-Phase acto 72 vdc.
• This assembly is used in all hhp Locomotives Operating on Indian railways.
• Built with high Quality electronics and rugged construction makes this unit give reliable performance for many years with specification zero maintenance.

Product Description:

• The SCR excitor bridge assembly is responsible for supply controlled field current to the traction alternator field winding in WD4/P4 Locomotives.
• The assembly is built with the highest quality of electronics and will give satisfactorty performance for many years.. it works with 230V 3-Phase AC Input and generates 120v DC and can handle more loan current upto 150 AMps.Dc

Product Description:

• This item is the child part of generator and it will be mounted inside alternator.
• It is also known as transformer CTA, CTB & CTC.

Specification:

1. Coil: 11.8±10% OHMS @25°C
2. Volts: 900 RMS PRIMARY
3. Cycles: 25 TO 75
4. Current Ratio: 500/0.5
5. Insulation: 1000V
6. Ambient Temperature: -40°C to 100°C

Application:

1. It is used in generator wiring application in locomotives
2. It is used for ground fault detection
3. It is used as instrument transformers for measuring current

Product Description:

Specification:

1. Max. Avg. forward current: 16A
2. Max. peak forward voltage drop: 1.2V
3. Max. peak one cycle surge current: 300A
4. Max. repetitive peak forward current: 80A

Application:

• It is used in the auxiliary generator of locomotives which converts Alternating Current (AC) to Direct Current (DC).
• It is used to provide control delay

Specification:

1. Max. Peak Reverse Voltage: 4000VDC
2. Max. Average Forward Current: 1.25adc @50°C
3. Max. Peak Forward Voltage Drop: 4.4volts @1.25 ADC
4. Operating Temperature: -40°C to +80°C Max.
5. Average Reverse Current: Max. Average Reverse Current

Application:

• It is used in electrical control cabinet
• Used in the Ground Relay Transductor (GRT) circuit to prevent AC voltage from the main generator from being applied to the negative 7 positive DC generator bus output

Product Description:

• Rectifier assembly is a part used in main control unit of locomotive.
• It comprises of Zener diode which is mounted on the moulded body.
• It is an semiconductor device that converts AC TO DC by suppression of inversion of alternate half cycle.
• This rectifier assembly consist of following parts:

1. Moulded body
2. Eyelet
3. Bus wire
4. Connector
5. Diode cup
6. Diode

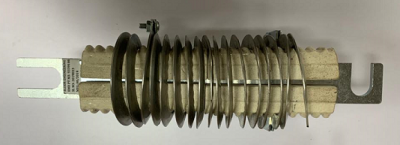

Product Description:

• The Resistors manufactured by Elixir are high stability and high-qualityPower resistors with a vitreous enamel coating.
• These are designed for general power applications and a wide range of resistance values is available.

1. ROHS compliantresistors
2. Terminals suitable for Faston connection, or bolt connections.
3. Suitable for General PowerApplications.
4. Good Electrical Stability, reliability and mechanically veryrigid.
5. Custom Terminations, Mounting Arrangementspossible.

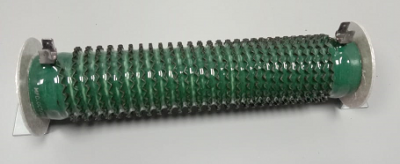

Product Description:

• The Resistors manufactured by Elixir are high stability and high-qualityPower resistors with a vitreous enamel coating.
• These are designed for general power applications and a wide range of resistance values is available.

1. ROHS compliantresistors
2. Terminals suitable for Faston connection, or bolt connections.
3. Suitable for General PowerApplications.
4. Good Electrical Stability, reliability and mechanically veryrigid.
5. Custom Terminations, Mounting Arrangementspossible.

Product Description:

• The Resistors manufactured by Elixir are high stability and high-qualityPower resistors with a vitreous enamel coating.
• These are designed for general power applications and a wide range of resistance values is available.

1. ROHS compliantresistors
2. Terminals suitable for Faston connection, or bolt connections.
3. Suitable for General PowerApplications.
4. Good Electrical Stability, reliability and mechanically veryrigid.
5. Custom Terminations, Mounting Arrangementspossible.

Product Description:

• The Resistors manufactured by Elixir are high stability and high-qualityPower resistors with a vitreous enamel coating.
• These are designed for general power applications and a wide range of resistance values is available.

1. ROHS compliantresistors
2. Terminals suitable for Faston connection, or bolt connections.
3. Suitable for General PowerApplications.
4. Good Electrical Stability, reliability and mechanically veryrigid.
5. Custom Terminations, Mounting Arrangementspossible.

Product Description:

• These terminal boards are used in electrical control cabinet (EEC) 1 of HHP locomotives.

Product Description:

• These terminal boards are used in electrical control cabinet (EEC) 1 of HHP locomotives.

Product Description:

• Any type of Costomised connectors with militarty grade according to specification

Product Description:

• There are Two Types of Box Display Distributor are equipped in ECC-1
  1. BOX DISTRIBUTOR -- SIGNAL
  2. BOX DISPLAY DISTRIBUTOR -- DUAL
• This distributor box is used to connect the computer to the panel mounted modules.
• And this connects COM304 module to the traction computers and CCB computer and event recorder.

Product Description:

• There are Two Types of Box Display Distributor are equipped in ECC-1
  1. BOX DISTRIBUTOR -- SIGNAL
  2. BOX DISPLAY DISTRIBUTOR -- DUAL
• This distributor box is used to connect the computer to the panel mounted modules.
• And this connects COM304 module to the traction computers and CCB computer and event recorder.

Product Description:

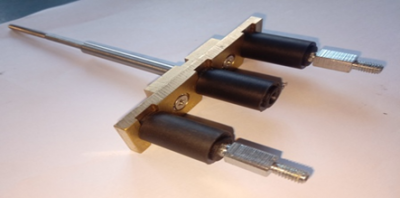

• Contact Assembly. Post Stationary equivalent to Part No.9536540

Product Description:

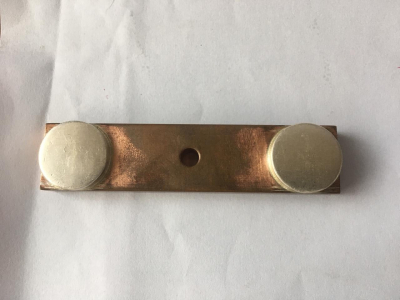

• Brush Assembly Movable Contact EMD Part No-9536539

Product Description:

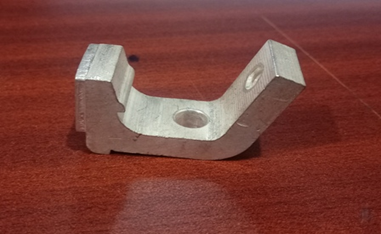

• Support Assembly. Stationary Contact equivalent to EMD Part No- 9577669

Product Description:

• This is child part of contactor generator field. Coil provides the driving force to close contacts in contactors.

Specification:

1. Coil Capacity: 267Ω + 10% @ 20°C
2. Working Voltage: 72VDC
3. Coil Pickup Voltage: 48VDC
4. Dropout Voltage: 5.28VDC
5. Hi-pot: Coil to ground 600V RMS

1. Coil Capacity: 34Ω +5% @ 20°C
2. Working Voltage: 74VDC
3. Pickup Voltage: 32VDC
4. Dropout Voltage: 3-16VDC
5. Hi-pot: Coil to ground 1.2KV

Product Description:

• This is child part of contactor generator field. Coil provides the driving force to close contacts in contactors.

Specification:

1. Coil Capacity: 267Ω + 10% @ 20°C
2. Working Voltage: 72VDC
3. Coil Pickup Voltage: 48VDC
4. Dropout Voltage: 5.28VDC
5. Hi-pot: Coil to ground 600V RMS

1. Coil Capacity: 34Ω +5% @ 20°C
2. Working Voltage: 74VDC
3. Pickup Voltage: 32VDC
4. Dropout Voltage: 3-16VDC
5. Hi-pot: Coil to ground 1.2KV

Product Description:

• This is child part of contactor generator field. Coil provides the driving force to close contacts in contactors.

Specification:

1. Coil Capacity: 267Ω + 10% @ 20°C
2. Working Voltage: 72VDC
3. Coil Pickup Voltage: 48VDC
4. Dropout Voltage: 5.28VDC
5. Hi-pot: Coil to ground 600V RMS

1. Coil Capacity: 34Ω +5% @ 20°C
2. Working Voltage: 74VDC
3. Pickup Voltage: 32VDC
4. Dropout Voltage: 3-16VDC
5. Hi-pot: Coil to ground 1.2KV

Product Description:

• Hence coils are the main part of Relay which are using in HHP locomotives.
• These can be used to protect circuits from the over load or faults this is a simple electromagnetic Relay coils of wire wrapped around a soft iron core.
• Relay Coil 1128Ω is used in GP Relay.

Product Description:

• Hence coils are the main part of Relay which are using in HHP locomotives.
• These can be used to protect circuits from the over load or faults this is a simple electromagnetic Relay coils of wire wrapped around a soft iron core.
• Relay Coil 1128Ω is used in GP Relay.

Product Description:

• Hence coils are the main part of Relay which are using in HHP locomotives.
• These can be used to protect circuits from the over load or faults this is a simple electromagnetic Relay coils of wire wrapped around a soft iron core.
• Relay Coil 1128Ω is used in GP Relay.
